Portable LAN

I made a battery-powered LAN network setup to carry with me.

While working on my randbeacon project, I wanted to manage my WLED setups at OpenSauce with an ethernet interface - so I could use my laptop’s wireless card to connect to the venue’s network. As you can see, the initial setup with this raspberry pi was a little clunky and annoying. The core parts are there, a usb-ethernet adapter and a phone charging battery pack. I tried carrying this around outside while getting photos for that project, and it was the worst.

The core is a RPi3 running OpenWRT, a fast and straightforward network router firmware. I also picked up a Gigabit network switch, which is throttled by the RPi3’s 10/100 ethernet port - but this isn’t primarily for speed, this is for when nothing else would work.

Another critical piece is that the switch is powered off 5V DC. This way I was able to make a dead simple cable that connects to a phone charger battery, which is way easier to integrate into a project than naked Lithium batteries and charge controllers. Regulating voltage is annoying, and more expensive anyway if the usecase doesn’t call for extreme current draw.

Part	Cost
Raspberry Pi 3B+	Basically free at this point
TP-Link TL-SG105 Switch	$13
Anker Power Bank “PowerCore 10K”	$21 (used)
Two scrap sheets of 1/4” Acrylic	$2
Handfull of zip ties	Free
Cannabalized USB cable	Free

The acrylic was scrap cutoffs from TAP plastics here in the bay area. They go for a dollar a sheet and are great value if the stuff you are making is small. I did round the corners and cut some holes, so the QL laser cutter came in handy again.

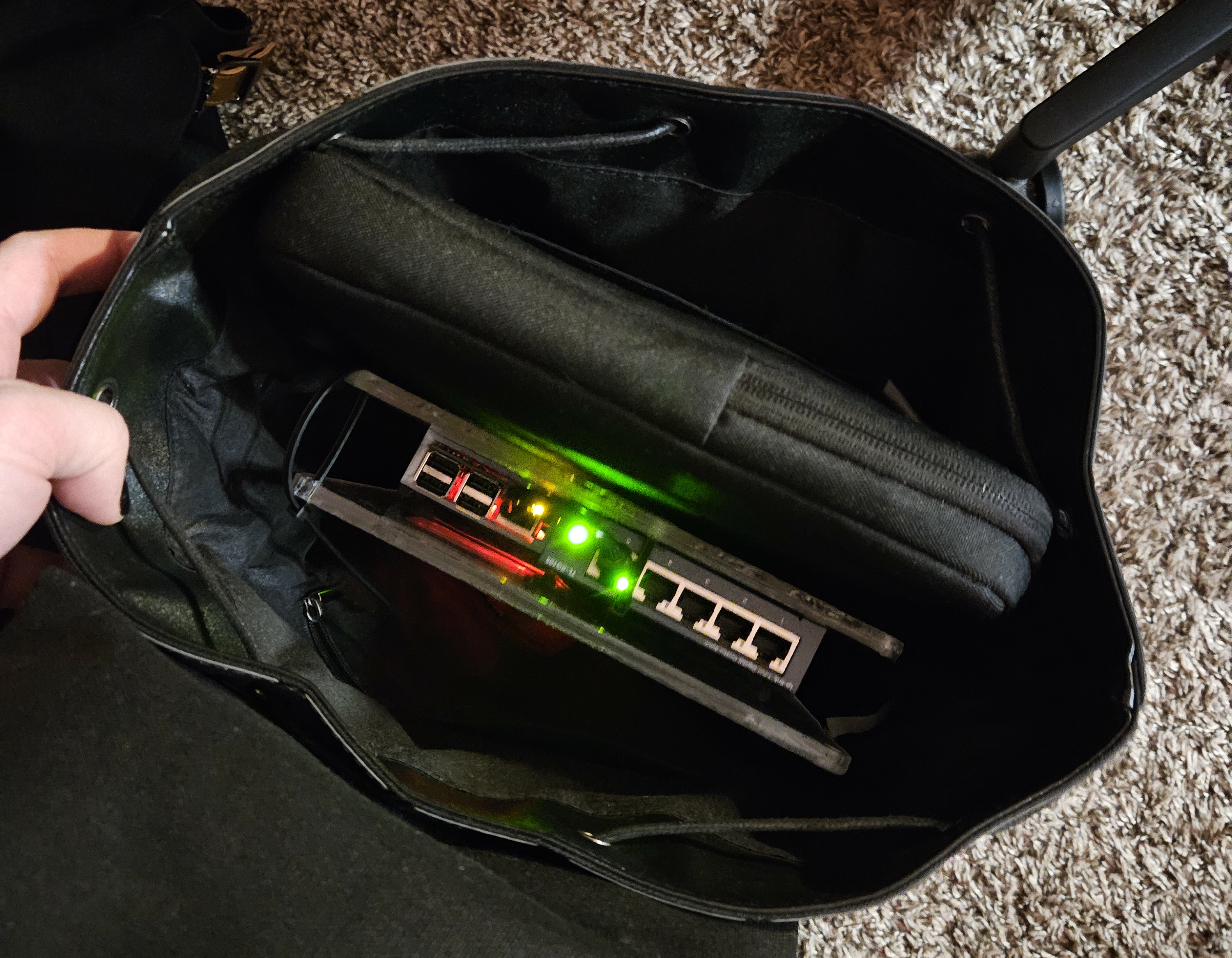

This setup fits perfectly in a backpack.

Another good thing to know is battery life. Mathematically, the 10 Ah pack could provide about 3 hours and 20 minutes of operation for the rated max of 2.5A (RPI 3B+) + 0.46A (Switch). In my own test of letting everything idle, the battery lasts about 12 hours. With these bounds I know the rough capacity and I’m pretty happy with this.
